Gangway systems for
passenger rail vehicles (UIC-561)

In mainline passenger service, gangway systems play a crucial role in ensuring safety, ride comfort and operational efficiency. HÜBNER supplies fully UIC-561 compliant gangway systems that are in line with international standards. They provide reliable and effective inter-car protection against external influences such as pressure waves, noise and heat loss. HÜBNER gangways ensure comfortable and stable connections between passenger coaches, contributing to safe and efficient rail operations.

Product overview / System solutions

HÜBNER offers a range of flexible design options – from pressure-tight systems to simple rubber-diaphragm solutions. All systems are supplied as complete units, including the corrugated bellows and the bridge assembly.

Bridge: Can be folded up, optionally height-adjustable, complies with Bern gauge requirements

Compatibility: Suitable for standardized passenger coaches in accordance with UIC 561 and IRS 50561

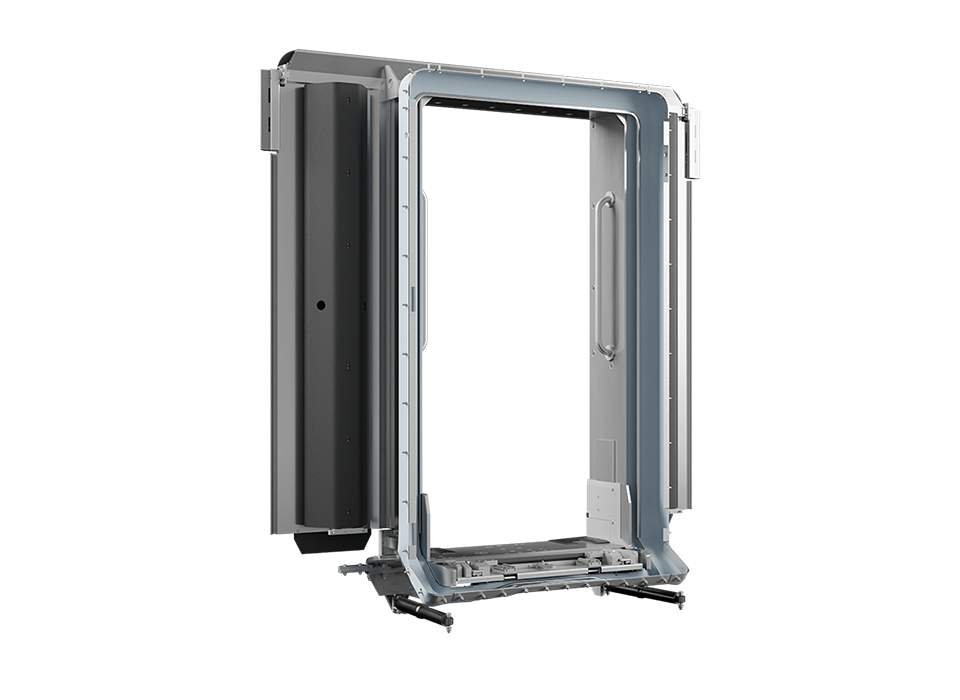

Standard variants (rubber diaphragm)

Simple construction: The gangway consists of just a few clearly defined components – the rubber diaphragm and the bridge assembly.

Easy coupling: Rubber diaphragms automatically align and seal with each other when cars are coupled, ensuring a robust connection.

Proven materials: Rubber materials that are resistant to UV, heat and cold deliver dependable performance under all climatic conditions.

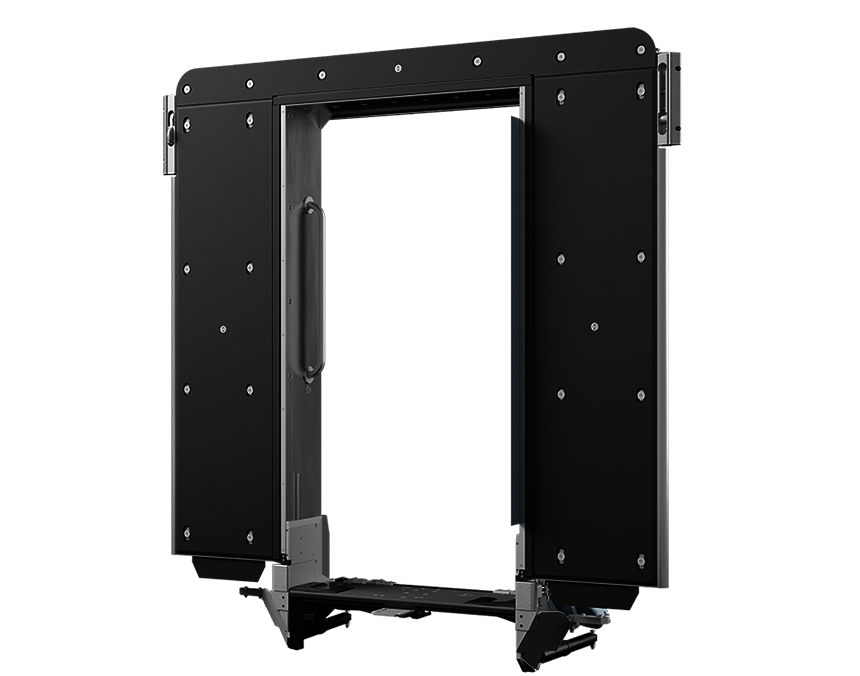

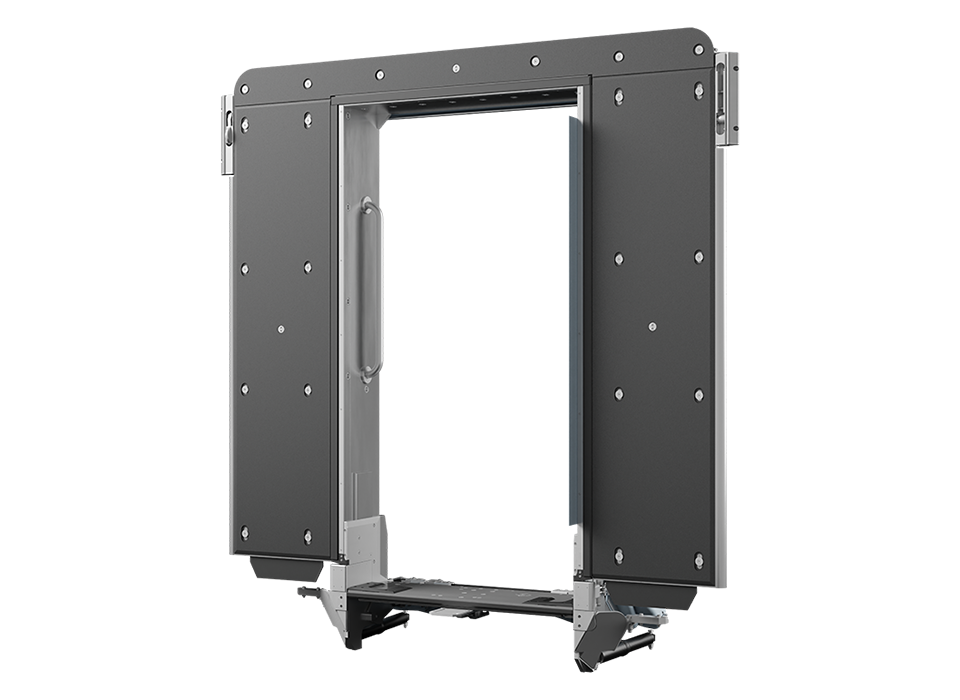

Pressure-tight variants

Optimized protection: Against pressure waves, noise, heat loss and dirt ingress.

Simple functional principle: Sliding plates provide reliable sealing and protection against pressure differentials.

Easy coupling: When coaches are coupled, the sliding plates automatically press together to create a secure seal.

International compatibility: Designed and tested in accordance with UIC 561 and IRS 50561 standards. The gangway systems are suitable for use in all standardized passenger coaches – both with other pressure-tight gangway versions or in mixed operation with simple rubber diaphragm gangways.

Flexible design options & maintenance-friendly: Design can be adapted to the vehicle contour; refurbishments are possible and many parts can be used.
